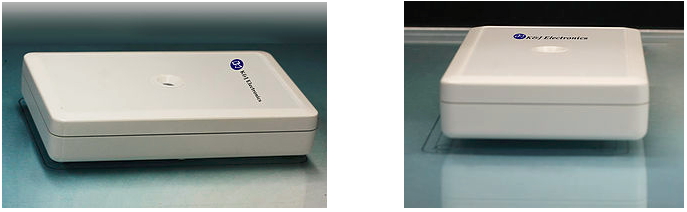

The Acoustic Glass Break Sensor is a sound detector,
not directly attached to the glass
but installed inside the building,
sensing a specific sound (frequency)
from the breaking glass.
it can sense diverse kinds
and numbers of window (Plate, Tempered, Coated)
within the sensing range.

- Dimension : 55(W) x 90(L) x 19.3(H) [mm]
- Operating Temperature : -10℃ to 50℃
- Power & Current consumptions : DC 12V / Max 50mA
- Range : 7.6M
- Relay : Form A (N.C)
- Red LED : Alarm
- Weight : 58g

Specifications_PDF
